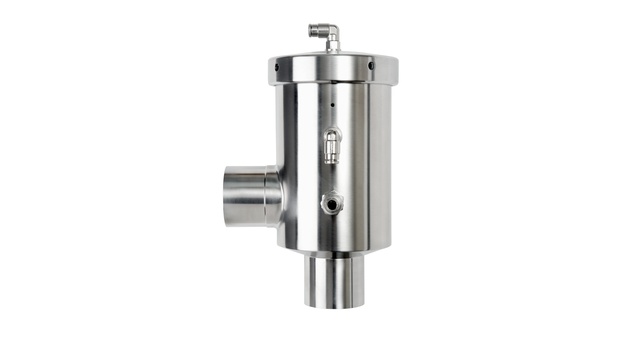

Válvula de descompresión SB
La válvula de control de presión de escape Alfa Laval SB es una válvula reguladora neumática que libera automáticamente la presión en un depósito de proceso higiénico cuando esta supera la presión establecida. Para garantizar una regulación segura de la presión en todo momento, la presión establecida se puede ajustar fácilmente de forma manual o de forma remota desde un punto conectado al sistema de control central.
Válvula reguladora que reduce automáticamente la presión de trabajo
- Control fiable de la presión en la parte superior del depósito
- Fácil de integrar con las válvulas de seguridad y las placas superiores SCANDI BREW®
- Se puede limpiar completamente con el sistema de limpieza in situ
- Fácil de integrar en instalaciones ya existentes
- Baja inversión gracias a una instalación simplificada
Esta válvula reguladora neumática está diseñada para su uso en tanques o recipientes de proceso destinados a aplicaciones higiénicas en las industrias cervecera, alimentaria, láctea, de bebidas y muchas otras.
How does the exhaust pressure control valve work?
Construction
The Alfa Laval SB Pressure Exhaust Valve consists of an AISI 316L stainless steel body, EPDM seals, and fittings for 4/6 mm nylon hoses for set point pressure and force opening. A cleaning nozzle and closing plug for the Cleaning-in-Place (CIP) inlet are also supplied. An optional pneumatic cleaning nozzle is available to replace the closing plug. The valve can be used as an integral part of SCANDI BREW® tank top system.
Operating principle
The exhaust pressure control valve is operated by means of the set point pressure being applied to the top of a membrane set. The pressure regulation will be identical to the set point pressure. The set point pressure is either reduced to the required pressure by means of a manual precision regulator or an IP converter controlled by a PLC.
When the tank pressure exceeds the set point pressure, the valve will open and release pressure through the valve side branch for atmospheric discharge or collection. To ensure correct working conditions, there should be no backpressure after the vent port.
After force-opening of valve by means of an air signal to the lower part of the membrane set, the valve can be effectively cleaned either by using the cleaning nozzle for inline cleaning of the valve at the same time as CIP of the vent/recovery mains takes place, or by using an optional CIP supply valve to connect a Cleaning-in-Place system to the valve housing.
Safe, effective pressure regulation
Easily integrated into a central process control system, this exhaust pressure control valve ensures safe, reliable and hygienic performance by releasing pressure in the process tank when it exceeds the set point pressure. To ensure safe pressure regulations at all times, the set point pressure can easily be adjusted manually or from a remote location that is connected to the central control system.
Hygienic, easy-to-clean design
To meet exceptionally high levels of hygiene, this regulating valve features simple, straightforward design. Smooth surfaces and food-grade finishes contribute to superior hygiene and cleanability. For fast, effective cleaning, a cleaning nozzle is supplied for inline cleaning of the valve at the same time as Cleaning-in-Place of the vent/recovery mains takes place. Alternatively, an optional CIP supply valve is available to connect a CIP system directly to the valve housing.
Flexible valve mounting
With flexible mounting positions, the valve can be positioned directly on tank top, as part of a tank top system or elsewhere along the pipework as long as there is proper drainage from the valve housing.
Option
- CIP supply valve

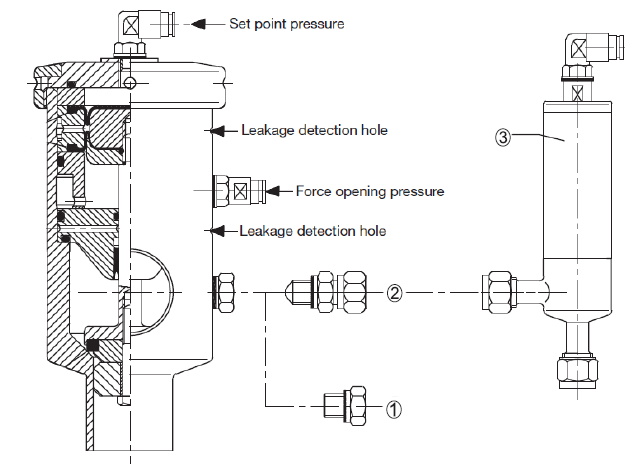

Pos. 1: Cleaning nozzle
Pos. 2: Closing plug
Pos. 3: Optional pneumatic CIP supply valve
Pos. 1 and 2 included with valve
