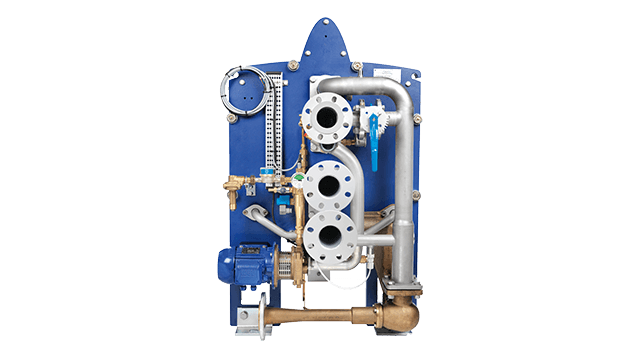

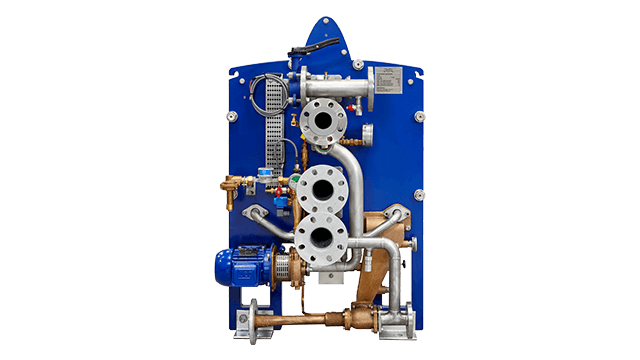

AQUA Blue
AQUA uses vacuum distillation to convert seawater into high-quality freshwater for domestic and process utilization on ships, rigs, as well as in remote onshore locations. Desalination of seawater is an economically feasible and reliable solution.
The AQUA freshwater generator is a major advance based on proven Alfa Laval expertise. AQUA’s optimized process cuts seawater needs in half, which minimizes pipework and allows the installation of smaller seawater pumps. This in turn reduces installation costs, fuel consumption and CO2 emissions.
AQUA makes use of 3in1 plate technology, which enables desalination in a single plate pack with one type of titanium plate. Since the plate pack also contains the process vacuum, AQUA has no outer shell and is smaller than other freshwater generators. The plate pack slides open for easy access to the interior without an additional service area.
The use of corrosion and erosion-resistant titanium, combined with an optimized process that inhibits natural scaling, ensures that AQUA needs little maintenance. The system has been fully tested both on and off shore, and is designed to last the lifetime of the ship.
Application
AQUA uses vacuum distillation to convert seawater into high-quality freshwater for domestic and process utilization. By providing a constant supply of low-salinity water and continuously controlling the water quality, it eliminates the need for bunker water.
AQUA is designed for automatic operation in periodically unmanned engine rooms and other automated operations. Jacket water, steam injection or a Hot Water Loop can all be used as heating media.
Capacity range
The AQUA series covers a capacity range from 3.1 to 60 m3/24 h, depending on the heating medium and cooling water temperatures. An AQUA freshwater generator can be dimensioned to suit any jacket water temperature from 55-95°C at any cooling water temperature.
Basic equipment

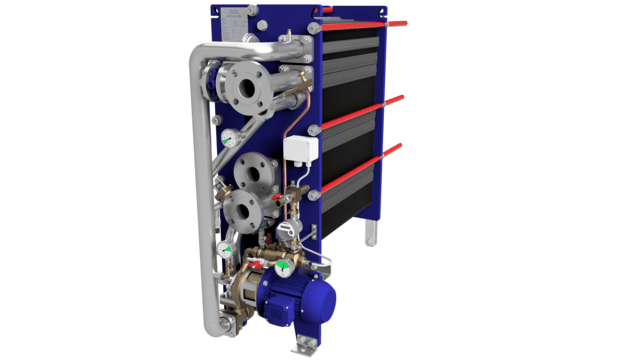

The AQUA freshwater generator consists of a single plate pack containing a flexible number of titanium process plates. These plates are suspended within a frame, which comprises a carrying bar, frame plate and pressure plate. Evaporation, separation and condensation all occur within the same plate pack.
Among the plate pack features are gaskets with rubber flaps that indicate correct plate assembly, as well as distance pipes that ensure proper plate alignment and correct tightening.
Connected to the plate pack is a combined system for feed water, condenser cooling water and ejector water. The freshwater system consists of a freshwater pump and a freshwater control sensor that ensures a stable outgoing flow.
Additional equipment
- Combined cooling and ejector water pump with electric motor
- Control panel with motor starters and salinometer
- Anti-scale chemical dosing unit for feed water
Optional equipment
- Steam heating system with direct steam injection
- Equipment for steam boosting and hot water loop system
- Extended control panel with motor starters and salinometer
- Freshwater pH adjustment equipment
- Freshwater disinfection equipment
- Connections according to DIN, JIS and ANSI standards
- Cleaning-in-Place (CIP) unit
Características y beneficios
- La mitad del caudal de agua de mar – en comparación con otros generadores de agua dulce, solo se necesita la mitad del agua de mar, lo que permite utilizar bombas más pequeñas. La distribución optimizada evita zonas secas e inhibe el proceso natural de incrustación.
- Menores costos y emisiones – la reducción en la necesidad de bombeo de agua de mar disminuye el consumo de energía eléctrica. Se quema menos combustible, lo que reduce los costos operativos y las emisiones de CO₂.
- Tecnología de placas 3 en 1 – AQUA Blue integra los procesos de evaporación, separación y condensación en un único tipo de placa de titanio. La desalinización se realiza dentro de un solo paquete de placas que también contiene el vacío del proceso. No requiere carcasa externa.
- Instalación simple y compacta – al no tener carcasa externa ni área de servicio adicional, AQUA Blue ofrece un peso y tamaño mínimos. Puede ensamblarse en sitio y su instalación se simplifica gracias al uso de bombas y tuberías más pequeñas. Además, no es sensible al balanceo ni a la inclinación del barco, por lo que puede instalarse en cualquier dirección a bordo.
- Fácil operación y mantenimiento – AQUA Blue ofrece un funcionamiento “arrancar y olvidar”, lo que ahorra tiempo a la tripulación. Los intervalos de mantenimiento son largos y el paquete de placas se desliza para un acceso sencillo al interior.
- Larga vida útil – materiales de alta calidad resistentes a la corrosión y a la erosión, incluido titanio en las placas y demás partes en contacto con el agua, aseguran que AQUA Blue dure tanto como el buque.
- Agua de baja salinidad – el agua dulce producida tiene un menor contenido de sal y sólidos disueltos en comparación con otros generadores, por lo que puede utilizarse directamente en calderas de vapor.
- Control continuo de calidad – el sistema de control de AQUA Blue, equipado con salinómetro, monitoriza de forma continua la calidad del agua dulce producida.
Cómo funciona

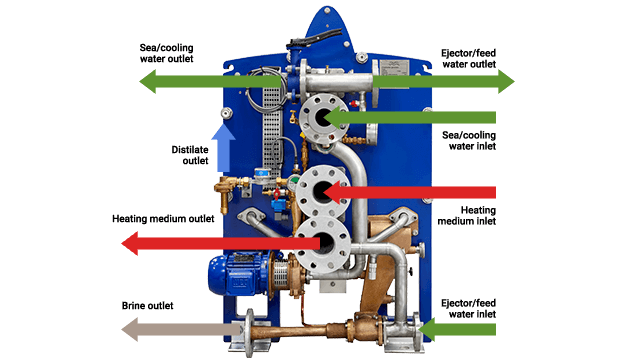

AQUA’s flow of feed water is taken from the flow of seawater coolant. Feed water enters the lower (evaporator) section of the plate pack, in which the plates are warmed by the heating medium. The heating medium is either engine jacket cooling water or a closed circuit heated by steam. Here the water is evaporated at around 40-60°C in a vacuum of 85-95%, which is maintained by the brine/air ejector.
The vapour produced rises between the plates into the middle (separator) section of the plate pack, where any droplets of entrained seawater are removed. Gravity causes these droplets to fall back into the brine sump at the bottom of the freshwater generator.
Only clean freshwater vapour reaches the top (condenser) section of the plate pack, which is cooled by a flow of seawater. Here the vapour is condensed into fresh water, which is pumped out of the freshwater generator by the freshwater pump.
