CH
The CH-range of disc stack separator separator systems is designed with versatility in mind to help you meet separation challenges in various process industries, even those with corrosive, erosive and hazardous environments. Our co-creation methodology and smart pre-engineered systems help reduce cost, time and effort. Each separator is made with outstanding quality and precision by Alfa Laval, based on more than 100 years of experience and innovation.
Solving separation challenges in the micron range to bring success to your business
- Solve expensive or troublesome filtration problems without adding or generating additional waste
- Reduce waste/emissions and increase yields
- Shorten process response time and reduce process inventory
- Deliver outstanding separation of the finest particles and droplets
Do you want to explore your separation challenge further by yourself?
Try it out on your own with our easy-to-use Explore tool, or reach out to us for guidance.
Curious to learn more?
If you are looking for superior separation performance, contact Alfa Laval today to learn more about our robust and cost-efficient solutions.
CH-range
The best-in-class system design is flexible enough to meet almost any requirement, both technically and commercially. The range is adapted for safe or hazardous areas. When the amounts of solids in the feed are low, we normally recommend an intermittent discharging centrifuge solution (PX-type). The automatic solids discharge technology helps minimize product loss.
CH 20
Sistema de separación de pila de discos montado sobre patín para aplicaciones industriales o plantas piloto con un rendimiento reducido. El CH 20 separa líquidos y sólidos finos en corrientes con pequeñas cantidades de sólidos.
-
De 100 l/h a 4 m3/h en función de la aplicación.
CH 300
Sistema modular de separación de pila de discos para aplicaciones industriales con rendimiento medio. El CH 300 separa líquidos y sólidos finos en corrientes con pequeñas cantidades de sólidos.
-
Desde 1 m3/h hasta 30 m3/h en función de la aplicación.
CH 600
Sistema modular de separación de pila de discos para aplicaciones industriales con rendimiento medio. El CH 600 separa líquidos y sólidos finos en corrientes con pequeñas cantidades de sólidos.
-
De 1 a 60 m3/h en función de la aplicación
CH 700
Modularized disc stack separation system for industrial applications with medium throughput. CH 700 separates liquids and fine solids in streams with small amounts of solids.
-
From 1 – 70 m3/h per hour depending on application
-
No shear acceleration of feed ensures product integrity and exceptional yield

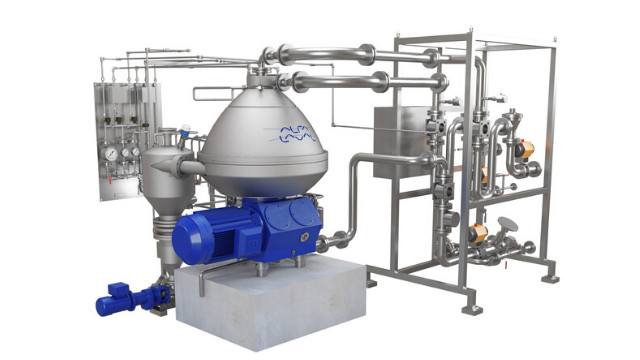

CH 900
Modularized disc stack separation system for industrial applications with medium throughput. CH 900 separates liquids and fine solids in streams with small amounts of solids.
-
From 1 m3/h to 90 m3/h depending on application
-
No shear acceleration of feed ensures product integrity and exceptional yield
-
Completely enclosed operation
Increase your separation efficiency and reduce energy consumption in completely enclosed operation
The Alfa Laval CH 900 centrifugal separator takes separation to a new level thanks to the innovative design of its flow path. The center-to-center principle ensures gentle acceleration into the high G-force separation environment inside the disc stacks. With this flow path design, Alfa Laval CH 900 uses up to 40% less power than conventional centrifugal separators.
The central bottom feed creates a liquid-filled, low-shear environment. The gentle acceleration of the feed keeps the feed droplets or particles intact. This results in superior separation performance, especially when handling emulsions or shear-sensitive particles.
The gentle flow conditions and short settling distances help ensure a low hold-up volume and keep the footprint to a minimum. The center-to-center flow design provides a fully enclosed, gas-tight handling of the process liquid.
CHX-range
The best-in-class system design is flexible enough to meet almost any requirement, both technically and commercially. The range is adapted for safe or hazardous areas. For processes containing high amounts of solids, we recommend a nozzle centrifuge (X-type) which enables continuous discharging. There are multiple types of nozzle separator to suit different applications. The nozzle type separator gives you the flexibility to handle high volumes of solids in the feed, fluctuating amounts of solids as well as high flow rates. Nozzles can be replaced from the outside.

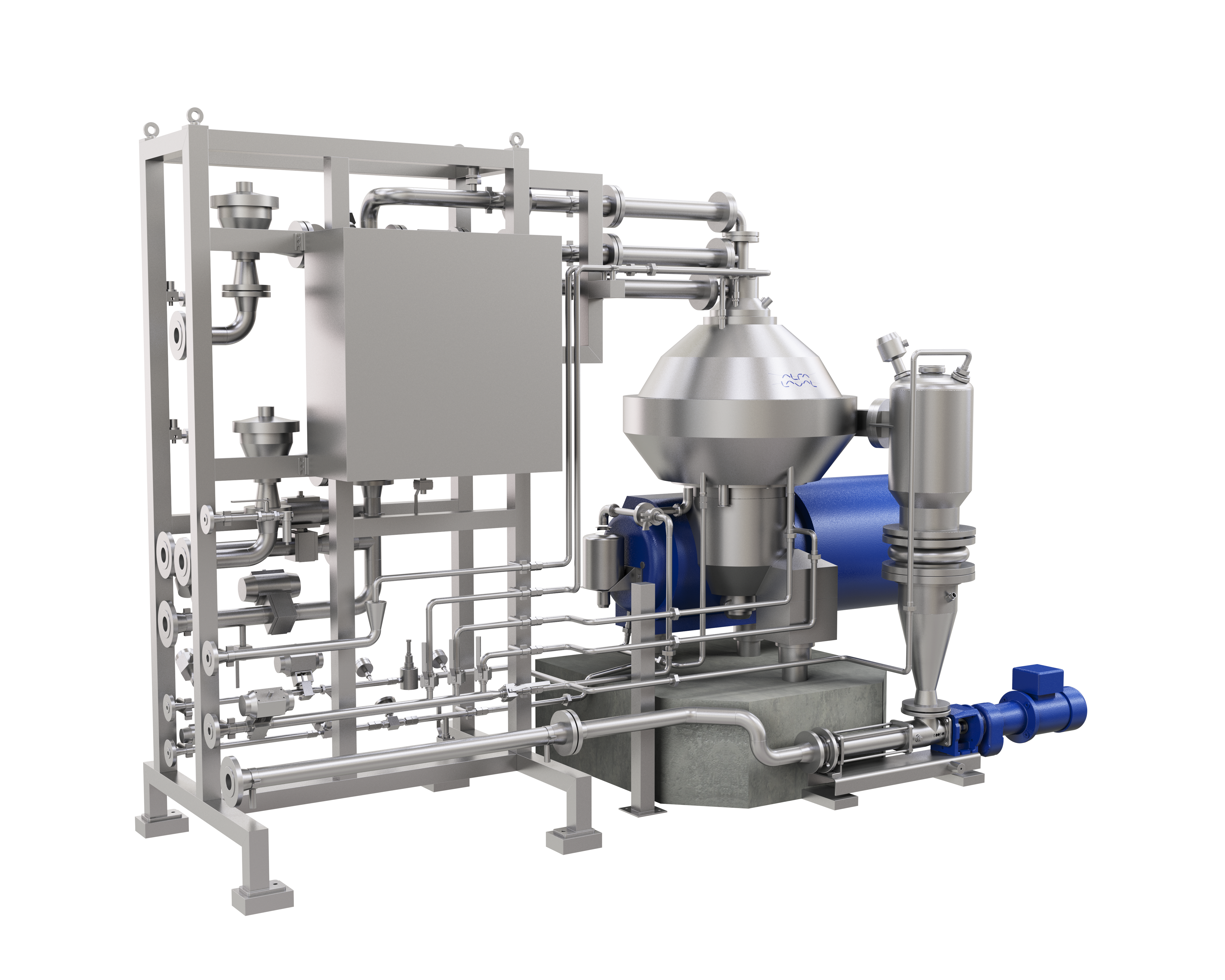

CHCX 500
Modularized disc stack separation system for industrial production with high amount of solids
-
5 – 50 m3/h depending on application
CHCX 2500
Modularized disc stack separation system for industrial production with high amount of solids
-
10 – 50 m3/h depending on application
MISX 2000
Modularized disc stack separation system for industrial production with high amount of solids
-
10 – 200 m3/h depending on application
-
Increased erosion & corrosion resistance for extra tough applications
CHB-range
The best-in-class system design is flexible enough to meet almost any requirement, both technically and commercially. The range is adapted for safe or hazardous areas. CHB is a non-discharging solid bowl (B-type) centrifuge solution for liquid/liquid separation applications where there are only small traces of solids in the feed. Any solids that enter the bowl will remain in the bowl until the unit is taken out of service and the solids are manually removed.
CHB 150
Modularized disc stack separation system for industrial applications with low amounts of solids
-
5 – 15 m3/h depending on application
Proven technology for biobased processes
The use of biobased processes in the Chemicals, Pulp & Paper and Renewable/Recycling industries is growing. Disc stack separators are since long a key technology in, for example, industrial fermentation and algae processes in food and pharma industries. Our separation equipment and know-how are invaluable for these new process industries.
Alfa Laval center-to-center design
Learn about the inner workings of the center-to-center function which provides a hermetic design and an enclosed process. See how it provides gentle product handling and maximum product quality
Case story: Hear from one of BASF's plant manager
Efficient separation of biomass with Alfa Laval hermetic technology.
Manufacturing world-leading separators
Alfa Laval delivers premium products for energy, food, water, biotech and pharma applications across the world based on more than a century of experience. Here’s one example from our Eskilstuna factory in Sweden.
The Separator Innovator
Would you like to know more about our innovations in separation technology? Click on the link below. Alfa Laval invented the first disc stack separator and has led the way in the development of centrifuge technology for over a century. We are glad to share with you the expertise we have gained along the way. Visit our Separator Innovator knowledge base to learn more about advancements in separation and the steps Alfa Laval is taking to continue revolutionizing the technology.
