P2
La gama de centrífugas decantadoras P2 de Alfa Laval (de tazón sólido) proporciona una solución rentable y de alto rendimiento para la separación sólido-líquido de lodos erosivos y/o corrosivos. Con un diseño altamente flexible, pueden ser utilizadas en industrias como la de procesamiento de minerales, pulpa y papel, alquitrán de hulla, acero y productos químicos, ya que las partes mojadas están hechas de materiales resistentes a la corrosión.
Centrífuga decantadora de alto rendimiento
- Alta recuperación del producto y de la valiosa materia prima en funcionamiento continuo
- Alta capacidad en un espacio reducido
- Funcionamiento económico - sin tela filtrante, sin bomba de vacío
- Bajo coste del ciclo de vida en comparación con otras tecnologías
- Bajo coste de la mano de obra debido a la menor intervención del operador
Cómo funciona
Technology / Innovation

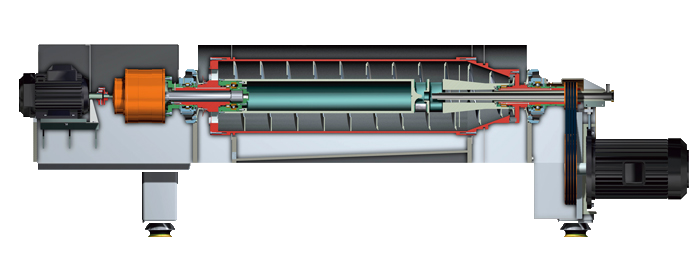

Robustly designed, the rotating assembly is supported on a box beam frame with main bearings at both ends. The bowl is driven at the conical end by an electric motor using a V-belt. Wear protection using suitable material of construction is provided on the wear parts.
The bowl, conveyor, casing, inlet tube, outlets and other parts that come into contact with the process media are made of AISI 316 and Duplex stainless steel. Super Duplex stainless steel can be provided on certain sizes.
The Prodec decanter centrifuge comes with an Alfa Laval plus control package as standard, pre-installed and factory-tested to make sure you get the most out of your set-up. It also helps minimize costs for installation, commissioning, operation and maintenance.
Learn more
Read more about how you can benefit from the solid-liquid separation of corrosive, erosive and high temperature slurries with our Prodec decanter (solid bowl) centrifuge by downloading the product leaflet.
Supporting sustainability goals
The bowl can be equipped with special power plates or tubes that harness and exploit hydraulic energy to reduce overall power consumption. Some of the discharge velocity from the liquid leaving the unit is captured and re-directed to contribute to bowl rotation. This reduces the velocity of the discharged liquid, which in turn reduces overall power requirements. The unique Alfa Laval direct drive system automatically controls the conveying speed to ensure optimum solids dryness, irrespective of acceptable variations in the feed flow.
