Válvula de alivio
Alfa Laval relief valve prevents vacuum or pressure build up inside tanks or vessels used in the brewery, food and beverage, personal care and biopharm industries.
Experience the benefits of the Relief Valve
- Overpressure protection
- Designed for product flows up to 800 hl/h
- Atmospheric tank in hygienic process lines
Alfa Laval relief valve is a pressure vacuum release valve in stainless steel. This relief valve has an oil bath located in the lower section of the valve to filter atmospheric impurities that may enter through the relief valve when emptying the tank. This safeguards product hygiene and quality by preventing atmospheric impurities from entering the tank.
How does a relief valve work?
Operating principle
Alfa Laval two-way relief valves enable: (1) pressurized air to flow out of the tank from an auxiliary passage to prevent an overpressure condition in the tank when the tank is being filled, and (2) air outside the tank to flow into the tank from an auxiliary passage to prevent vacuum conditions in the tank when the tank is being emptied.
Polyethylene relief valve
For Alfa Laval polyethylene relief valves, there is a glass or polyethylene ball inside each of the two valve chambers. When the tank is filled, the ball inside one of the chambers is forced up to enable air to flow out of the tank. When the tank is emptied, the ball in the other chamber is forced up to enable air to flow into the tank.
Overpressure protection
To protect against overpressure and vacuum conditions while filling or emptying the tank of liquid, Alfa Laval two-way relief valves are mounted on top of an atmospheric tank in hygienic process lines.
Product range

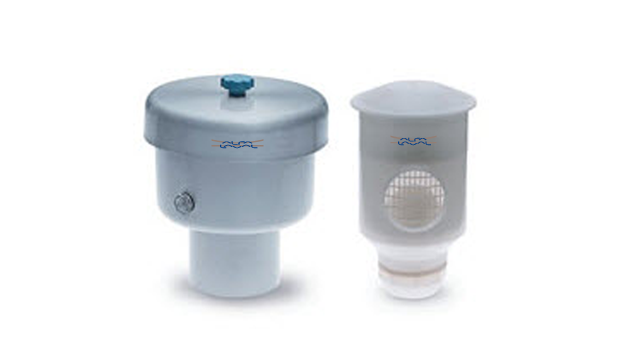

The Alfa Laval range of relief valves (RV) consists of two models made of either polyethylene or AISI 304/316 stainless steel. The polyethylene model is designed for product flows up to 800 hl/h and is available in four different standard sizes: RV130, RV400, RV400A and RV800. The stainless steel model is designed for more stringent hygienic requirements. It handles product flows up to 1000 hl/h and is available in two different standard sizes: RV600 and RV1000.
Catálogo «A mano»
El catálogo de productos de higiene «A mano» incluye folletos de productos, enlaces a animaciones, catálogos y listas para realizar pedidos.
Portal CAD
El portal CAD de Alfa Laval es una plataforma esencial para descargar información detallada sobre productos, planos en 2D y modelos de productos en 3D.
Servicio
Nuestra red global de servicio dedicada le brinda asistencia con repuestos y experiencia, dondequiera que se encuentre y cuando lo necesite. Al garantizar un mayor tiempo de actividad, disponibilidad y optimización, le ayudamos a estar tranquilo y a maximizar el retorno de su inversión. Podemos trabajar con usted para integrar nuestros servicios en un contrato de servicio de Alfa Laval para que disfrute de un funcionamiento predecible y sin preocupaciones.
Más información sobre nuestra oferta de servicio Solución de problemas
Piezas de repuesto Asistencia técnica
Búsqueda por número de serie Certificación
Póngase en contacto con nosotros si tiene alguna duda o pregunta.
Visita el Centro de Aplicaciones e Innovación
¿Desea identificar el equipo óptimo para el trabajo y descubrir ahorros tangibles antes de decidirse por una actualización? En el Centro de Aplicaciones e Innovación de Alfa Laval, puede hacerlo.
Optimize™ de Alfa Laval
Optimize™ de Alfa Laval mejora sus procesos actuales y permite ahorrar hasta un 90 % en agua, energía y productos químicos con inversiones mínimas y sin riesgos.
Find the products you are looking for
The digital Alfa Laval Product Catalogue makes it easy to find and select the products you need. When you request a quote, the catalogue will list Alfa Laval’s partners in your region – and you can send your request directly.
Part of a broad tank equipment range
Alfa Laval offers a comprehensive range of tank equipment intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.

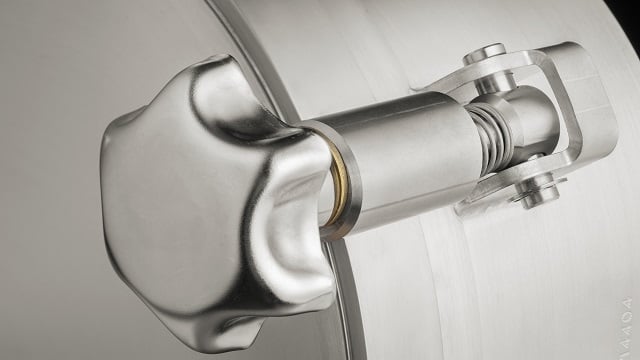

For a broader tank equipment range, explorer the different product categories: rotary jet heads, rotary spray heads, tank accessories and tank covers.
